Name: 100 GHZ AWG Mux
Brand: Seacent
Price: 1 USD

Add to Cart

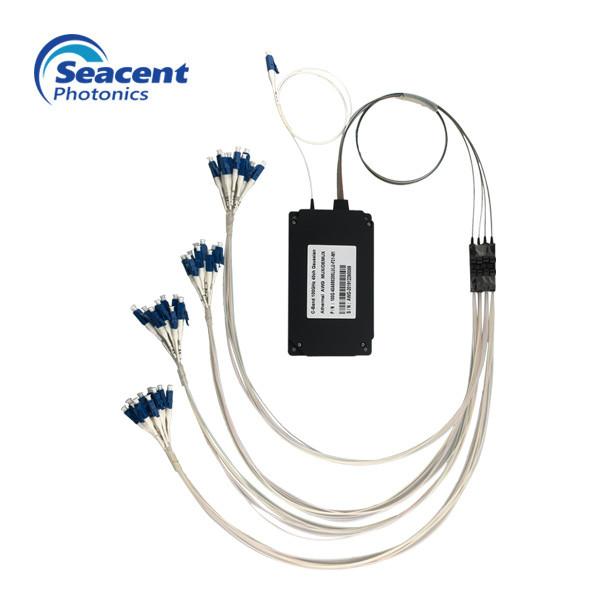

AWG DWDM Multiplexer Module Seacent Fiber WDM Fiber Network 40CH 100GHZ ABS

AWG Module Technical Parameters

parameter	Unit	100Ghz		100Ghz
parameter	Unit	Gaussian	Flat top	Gaussian	Flat top
Wavelength Accuracy	nm	±0.05	±0.05	±0.07	±0.07
Full 1dB Bandwidth	nm	＞0.2	＞0.4	＞0.4	＞0.7
Full 3 dB Bandwidth	nm	＞0.4	＞0.6	＞0.7	＞1.0
Optical Insertion Loss	dB	3.7	4.5	3.7	4.5
Loss Uniformity	dB	1.0	1.0	0.8	0.8
Adjacent Channel Crosstalk	dB	27.0	27.0	28.0	28.0
Non-adjacent Channel Crosstalk	dB	30.0	30.0	30.0	30.0
Optical Return Loss	dB	＞40	＞40	＞40	＞40
Polarization Loss	dB	＜0.5	＜0.5	＜0.5	＜0.5
Dimension	mm	120x70x12.3 / 85x58x113
Operating Temperature	℃	-20- 70

Product information

AWG appication
