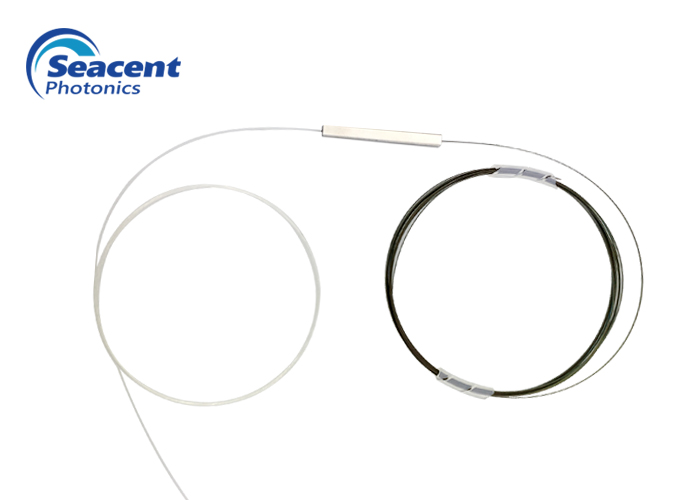

    Bare Fiber 1*4 Fiber Optic Plc Splitter SC/APC Connector High Stability

    Ask Lasest Price
    Brand Name : Seacent
    Model Number : bare fiber 1*4 PLC Splitter
    Certification : ISO9001 , ROHS
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100,000 pieces per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Bare Fiber 1*4 Fiber Optic Plc Splitter SC/APC Connector High Stability

    Bare Fiber 1*4 Fiber Optic Plc Splitter SC/APC Connector High Stability


    Product description:


    The planar waveguide optical splitter (PLC Splitter) is a quartz-based integrated waveguide optical power distribution device with small size, wide operating wavelength range, high reliability, good spectral uniformity, etc., especially suitable for passive optical networks. (EPON, GPON, etc.) connects the central office and terminal equipment and realizes the splitting of optical signals, providing 1XN and 2XN full range of products, and does not customize the optical splitter suitable for various occasions.


    Product features:


    Low loss and stable polarization

    Compact design

    Good channel uniformity

    High stability and reliability

    Certified by Telcordia GR.1209 and GR.1221


    Product application areas:


    Fiber to the home

    Passive optical network

    wired TV internet

    PON-FTTX network


    Ordering Information:


    Product

    type

    		Fiber diameterInlet and fiber length

    Package

    size

    1XN or 2XN

    0102=1X2

    0103=1X3

    0104=1X4

    0105=1X5

    0106=1X6

    0107=1X7

    0108=1X8

    0112=1X12

    0116=1X16

    0124=1X24

    0132=1X32

    0148=1X48

    0164=1X64

    1128=1X128

    1=250um

    2=900um

    0=0.5M

    1=1.0M

    2=1.5M

    3=2.0M

    4=2.5M

    S=Customized


    Technical parameters: 1XN optical splitter


    Parameter1X21X31X41X61X81X121X161X241X321X481X641X128
    Working wavelength (nm)1260-1650
    Fiber typeG657A1 or customized
    Insertion loss (dB)3.96.17.2910.212.513.515.516.818.420.123.8
    Uniformity (dB)≤0.4≤0.5≤0.5≤0.6≤0.8≤1.0≤1.0≤1.5≤1.5≤1.8≤1.8≤2.5
    Polarization dependent loss (dB)≤0.25≤0.25≤0.25≤0.25≤0.25≤0.3≤0.3≤0.3≤0.3≤0.4≤0.35≤0.35
    Return loss (dB)≥55
    Directionality (dB)≥55
    Fiber length (m)1.0or customized
    Temperature stability (dB)-40℃--85℃(≤0.5)
    Working temperature °C-40℃--85℃
    Storage temperature °C-40℃--85℃

    Technical parameters: 2XN optical splitter


    Parameter2X22X42X82X162X322X64
    wavelength(nm)1260-1650
    Fiber typeG657A1 or customized
    Insertion loss (dB)4.27.510.513.817.120.4
    Uniformity (dB)≤0.8≤1.0≤1.0≤1.5≤1.5≤2.0
    Polarization dependent loss (dB)≤0.25≤0.25≤0.25≤0.3≤0.3≤0.35
    Return loss (dB)≥55
    Directionality (dB)≥55
    Fiber length (m)1.0or customized
    Temperature stability (dB)-40℃- 85℃(≤0.5)
    Working temperature °C-40℃- 85℃
    Storage temperature °C-40℃- 85℃
    Maximum power (nW)1000

    Note: The above IL is without the connector parameters.

    2xN with connector optical splitter insertion loss increases by no more than 0.3dB on the above requirements.


    Details

    Detailed parameters


    PLC Splitter-Bare Device-Seacent Photonics .pdf
