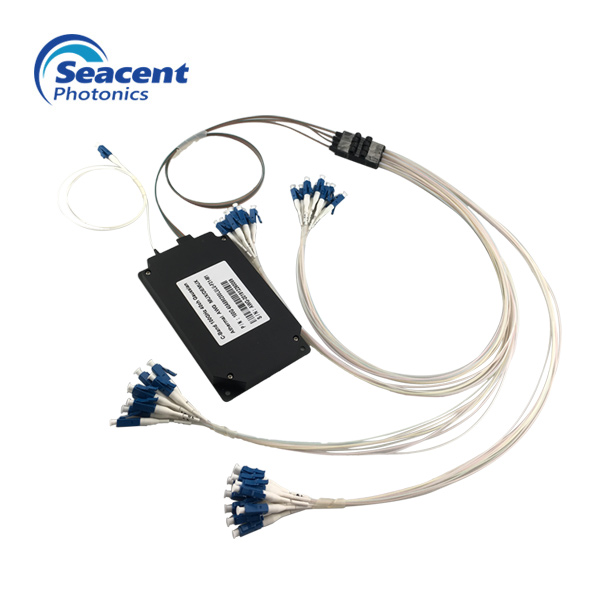

40CH AWG Mux C Band Flat Top For WAN Systems ROADM High Isolation

AWG description:

Arrayed Waveguide Grating(Athermal AWG) is a high-performance DWDM mux/demux device operating on 100GHz channel spacing without the need for temperature stabilization. The planar processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths. Athermal AWG s allow multiplexing and demultiplexing of DWDM signals over a wide operating temperature range, without the need for heater drive and monitoring electronics.

AWG Features:

Upstream and downstream dual frequency bands using a single chip microcomputer

Low insertion loss

High return loss

High isolation

compact desigh

Thermal stability

1270-1610nm

AWG Technical Parameters

Details

Detailed parameters

DWDM-AWG-Seacent Photonics.pdf

Shenzhen Seacent Photonics Co.,Ltd. is an optical communication company established in 2011. It is headquartered in Shenzhen, China and has a subsidiary in Hunan, China. It currently employs about 400 people and has a site area of approximately 4,000 square meters. Focusing on high-speed optical communication for 10 years, we have been adhering to the concept of quality as the core and driven by technological innovation, and are committed to providing total solutions for data centers, enterprises and operators.
