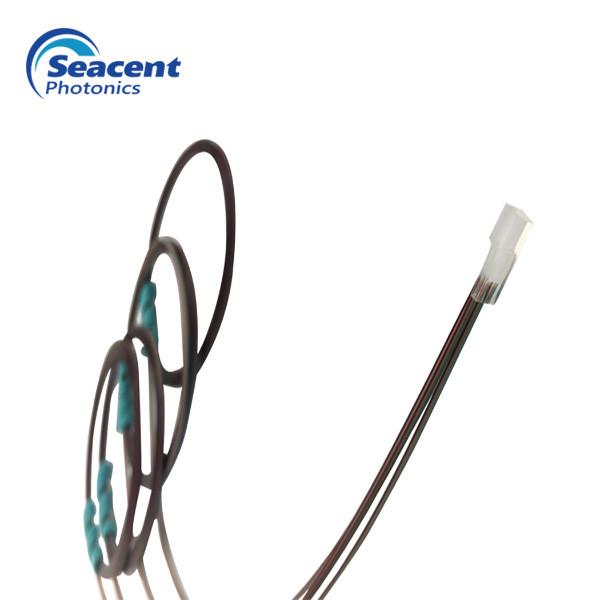

32CH Quartz Glass Material Optical Fiber Array 2.0±0.1length 0,+8, -8 (±0.3) Angle

Ask Lasest Price
Brand Name :	Seacent
Model Number :	Fiber array-32CH
Certification :	ISO9001,ROHS
Payment Terms :	L/C, T/T
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

32CH Quartz Glass Material Optical Fiber Array 2.0±0.1length 0,+8, -8 (±0.3) Angle

Fiber array 32CH Quartz glass material 2.0±0.1length 0,+8, -8 (±0.3) angle

Description:

Fiber Arrays are fabricated with high precision V-groove substrate by Browave unique assembly/polish process to get an excellent accuracy of fiber core position and perfect quality of the polish surface.

We provide high-quality Fiber Array to meet customers' various demands with low insertion loss, high return loss, and compact dimension.

Specifications:

Item	Parameter
Number of channels	1CH ~ 128CH
Material	Quartz glass, borosilicate, silicon
Core distance/tolerance(μm)	250, 127 / 0.7
Fiber length (m)	2.0±0.1
Polishing angle ( ° )	0,+8, -8 (±0.3)
Polishing flatness	﹤ 5 fringes@633nm
Fiber type	SMF-28e or SMF-28e XB
Operating temperature(℃)	-40~85

V-groove base plate dimension table:

	L		W		H		X		Y	comprehensive error
type	size	common difference	size	common difference	size	common difference	size	common difference	core height difference	R=√ x2+y2
2CH 250	10	±0.3	2.5	±0.05	2.5	±0.05	0.25	≤0.0005	≤0.001	＜0.1
4CH 250	10	±0.3	2.5	±0.05	2.5	±0.05	0.25	≤0.0005	≤0.001	＜0.1
8CH 250	10	±0.3	3.5	±0.05	2.5	±0.05	0.25	≤0.0005	≤0.001	＜0.1
8CH 127	10	±0.3	2.5	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
16CH 127	10	±0.3	3.5	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
32CH 127	10	±0.3	5.7	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
48CH 127	12	±0.3	7.8	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
64CH 127	12	±0.3	9.8	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
96CH 127	12	±0.3	16	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1
128CH 127	12	±0.3	20	±0.05	2.5	±0.05	0.127	≤0.0005	≤0.001	＜0.1

Applications:

MEM
PLC Devices: PLC Splitter, AWGs
Integrated Active/Passive Components
Micro Optics Modules
Variable Optical Attenuators
Lens/Collimators Array

Ordering Information:

Product number	Fiber type	Fiber length
01=1CH 02=2CH 03=4CH 04=8CH 05=12CH 06=16CH 07=24CH 08=32CH 09=48CH 10=64CH 11=96CH 12=128CH	1=G657A1 2= G657A2 3=G652D 4=G652B	0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=Customized
