Cassette Type DWDM Mux Demux , 1×8 Multi Channel 200G Fiber Optic DWDM

Ask Lasest Price
Brand Name :	Seacent
Model Number :	*DWDM cassette type 1 8 200G**
Certification :	ISO9001,RoHS
Payment Terms :	L/C, T/T
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

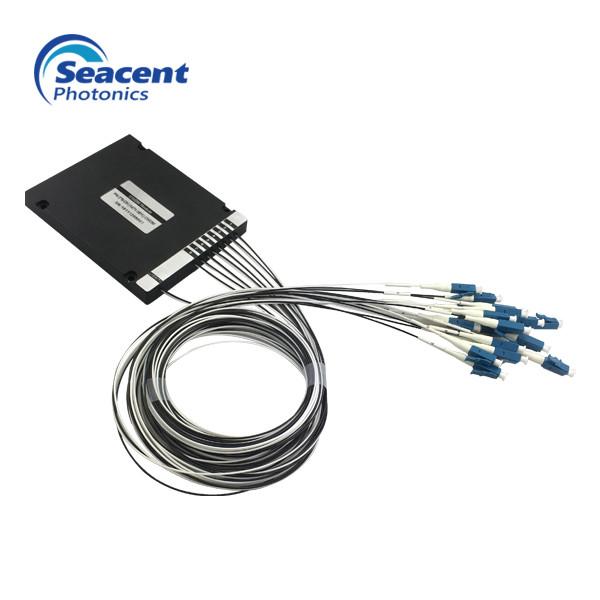

Cassette Type DWDM Mux Demux , 1×8 Multi Channel 200G Fiber Optic DWDM

DWDM cassette type 1 * 8multi-channel 200G dense wavelength division multiplexer

Description:

DWDM is using optical multiplexers to reuse different wavelengths of light into a single fiber to transmit signals. At the receiving end of the link, the mixed signal is decomposed into signals in the fiber by means of an optical demultiplexer Different wavelengths are connected to the corresponding receiving equipment.

Features:

Low insertion loss

High isolation

Low PDL

Compact design

Good channel-to-channel consistency

Wide operating temperature: -20 ℃ ~ 70 ℃

High reliability and stability

Application:

CWDM system

PON network

Cable chain

Technical Parameters

Item	Parameter
Center wavelength (nm)	ITUGrid
Product Features	Mux orDemux or Mux&Demux
Channel pitch (nm)	100G		200G
Channel passband (@ -0.5db bandwidth (nm)	>0.3		>0.5
Number of channels (ch)	4	8		16
Insertion loss (dB)	≤1.8	≤3.0		≤5.0
Channel flatness (dB)	≤0.5	≤0.5		≤0.5
Isolation (dB) adjacent	>30	>30		>30
Isolation (dB) non-adjacent	>45	>45		>45
Polarization-dependent loss (dB)	<0.2
Polarization Mode Dispersion (PS)	<0.1
Directivity (dB)	>50
Return loss (dB)	>45
Connector type	LC/APC or customer specified
Maximum power (mW)	500
Working temperature (℃)	-20~70
Storage temperature (℃)	-40~85
Package type (mm)	LGX, cassette, rack or customer specified
Package size (mm)	LGX:201x256x44 or 155x100x29
	Box:100x80x10 or 120x80x18 or 141x120x28
	Rack:1U: 484x260x44 or 2U: 482x260x88
Note: The above parameters do not include connectors
