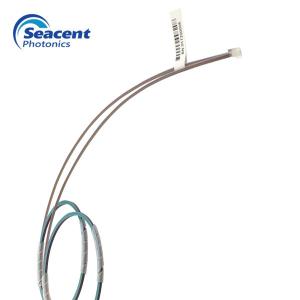

Duplex Multimode Fiber Patch Cord , FC FC Patch Cord SM9/125 G657A
Description:
Optical fiber jumper is used as a link between fiber optic cable
and equipment wiring. It has a thick protective layer, generally
used in the connection between the transmitter and the terminal
box.
The fiber optic connector is divided into single-mode and
multi-mode connectors. According to the structure of the connector,
it can be divided into various customized models such as SC, FC,
LC, and ST. The ST connector is usually used for the wiring device
end, and the other connectors are the wiring environment. Link, the
main material uses A-class ferrule, imported aramid, high tensile
strength, large tensile strength, cable sheath is made of PVC
low-smoke flawless environmentally friendly flame retardant
material, high flame retardant fire resistance grade, in line with
ROHS wire certification standards.
Ordering information:
| Connector type | Casing color | Fiber type | Cable diameter | Fiber length | Cable type | Casing material |
1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST 8=Customized | 1=yellow 2=Orange 3=Aqua blue S=Customized | 1=SM9/125 G652D 2=SM9/125 G657A 3=MM50/125 OM3 4=MM62.5/125 OM1 S=Customized | 1=0.9mm 2=2.0mm 3=3.0mm | 0=0.5m 1=1.0m 2=1.5m 3=2.0m S=Customized | 1=Single core 2=Double core 3=waterproof 4=Branch 5=With fiber 6=Bundle | 1=PVC 2=LSZH 3=OFNR |
Technical parameter:
| FC,SC,LC | ST,MU | MTRJ | |
| SM | MM | SM | MM | SM | MM | |
| parameter | UPC | APC | UPC | APC | UPC | APC | UPC | APC | UPC | APC | UPC | APC | |
| Working wavelength(nm) | 1310,1550 | 850,1300 | 1310,1550 | 850,1300 | 1310,1550 | 850,1300 | |
| Fiber type | G657A1 or customed | |
| Insertion loss(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return loss(dB) | ≥55 | ≥60 | ≥35 | ≥35 | ≥50 | ≥50 | ≥35 | ≥35 | ≥50 | ≥50 | ≥35 | ≥35 |
| Repeatability(dB) | ≤0.1 |
| Interchangeability(dB) | ≤0.2 |
| Number of plugs(frequency) | ≥1000 |
| Tensile strength (N) | ≥70 |
| Durability (dB) | ≤0.2 |
| Working temperature (°C) | -40℃- 85℃ |
| Storage temperature (°C) | -40℃- 85℃ |
Ferrule technical parameters:
| description | Single mode | Multi mode |
| length | (10.50±0.05)nm | (10.50±0.01)nm |
| Outer diameter | (2.4990±0.005)nm | (2.4990±0.001)nm |
| inside diameter | (0.125±0.001)nm | (0.126±0.129)nm |
| Concentricity | ≤1.0 | ≤4.0 |
Product features:
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
Certified by Telcordia GR.1209 and GR.1221
Meet ROHS standards
Product application areas:
Fiber to the home
Passive optical network
Optical transmission system
Optical fiber sensing system
Test Equipment ; PON-FTTX network
