1. Features:

• Support 8.5Gb/s to 11.3Gb/s
• Hot-Pluggable SFP+ footprint
• Single LC for Bi-directional Transmission
• Built-in 1270nm DFB Laser
• Built-in 1270nm WDM Filter
• Built-in digital diagnostic functions
• Up to 20 km on 9/125μm SMF
• Single +3.3V Power Supply
• Low power dissipation <1.5W typically
• No Reference Clock required
• Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
• Very low EMI and excellent ESD protection
• RoHS compliant

2. Applications:

• 10GBASE-LR/LW Ethernet
• 10G Fibre Channel
• SONET OC-192/SDH STM-64

Description:

Seacent Bi-directional 10 GB/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-BX/LR/LW Ethernet, SONET OC-192/SDH STM-64 and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.

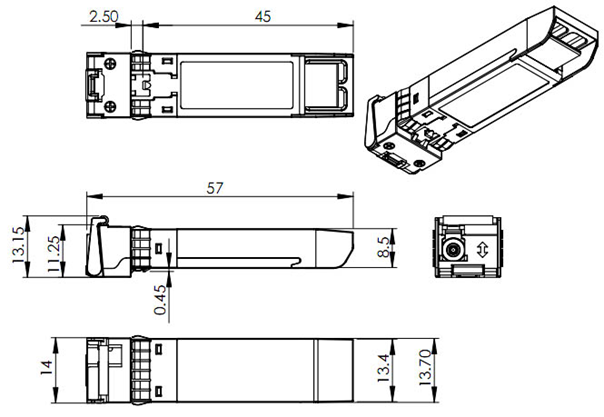

Mechanical Dimensions
