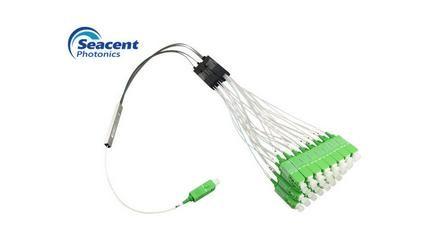

FTTH Fiber Optic Splitter 1x32 Planar Lightwave Circuit Splitter
Fiber Optic PLC Splitter Description
PLC Splitter also named Planar Lightwave Circuit Splitters or
balanced optical splitter, this optical splitter are Single Mode
Splitters with an even split ratio from one input fiber to multiple
output fibers. The 1x16 optical splitter with 1 input and 16 output
fibers with an even split ratio across all fibers regardless of
input wavelength. some of its most notable characteristics, its
compact size, the low insertion loss and the excellent uniformity
offered, giving this splitter model a high degree of reliability,
The Balanced 1x16 optical splitter was application in FTTh / FTTx
networks and can also be used in other applications such as passive
optical networks, fibrotic sensors, local area networks and test
instruments.
Fiber Optic PLC Splitter Features
- Good channel uniformity.
- High stability and reliability
- Certified by Telcordia GR.1209 and GR.1221.
Application Of PLC Optical Splitter
PLC splitter was widely used in all kinds of optical network
solutions , such as Security Monitoring, Optical Communication,
Network Construction, CATV and Pon network.
- Fiber to The Home (FTTH)
- Passive optical networks (PON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
Fiber Optic PLC Splitter Parameters
| Parameter | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Working wavelength (nm) | 1260-1650 |
| Fiber type | G657A1 or customized |
| Insertion loss (dB) | 7.2 | 10.2 | 13.5 | 16.8 | 20.1 |
| Uniformity (dB) | ≤0.5 | ≤0.8 | ≤1.0 | ≤1.5 | ≤1.8 |
| Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.35 |
| Return loss (dB) | ≥55 |
| Directionality (dB) | ≥55 |
| Fiber length (m) | 1.0 or customized |
| Temperature stability (dB) | -40℃--85℃(≤0.5) |
| Working temperature °C | -40℃--85℃ |
| Storage temperature °C | -40℃--85℃ |
| Maximum power (nW) | 1000 |
Note: The above IL is without the connector parameters.
1XN with connector optical splitter insertion loss in the above
requirements in addition to 1X2 increase does not exceed 0.2dB, the
remaining increase does not exceed 0.3dB.
| Parameter | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Working wavelength (nm) | 1260-1650 |
| Fiber type | G657A1 or customized |
| Insertion loss (dB) | 7.5 | 10.5 | 13.8 | 17.1 | 20.4 |
| Uniformity (dB) | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | ≤2.0 |
| Polarization dependent loss (dB) | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.35 |
| Return loss (dB) | ≥55 |
| Directionality (dB) | ≥55 |
| Fiber length (m) | 1.0 or customized |
| Temperature stability (dB) | -40℃--85℃(≤0.5) |
| Working temperature °C | -40℃--85℃ |
| Storage temperature °C | -40℃--85℃ |
| Maximum power (nW) | 1000 |
Note: The above IL is without the connector parameters.
2XN with connector optical splitter insertion loss increased by no
more than 0.3dB in the above requirements.
Fiber Optic PLC Splitter Detailed Specification
PLC
Splitter-Branch type-Seacent Photonics.pdf
